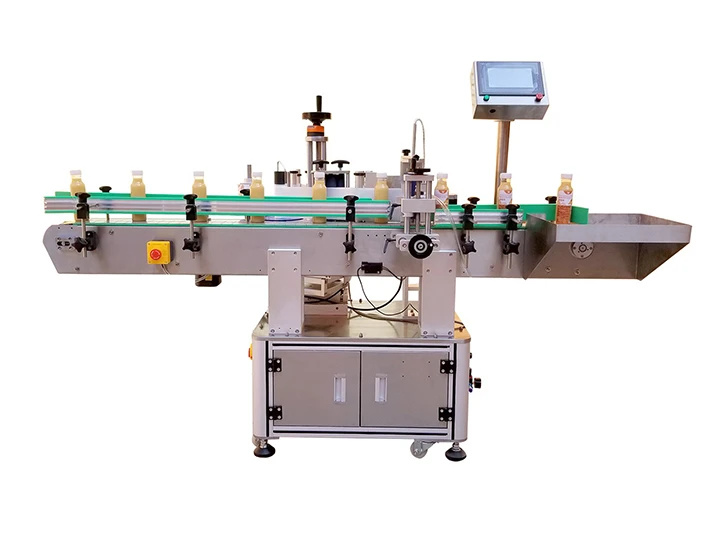

Automatic Vertical Round Bottle Labeling Machine

Pharmaceutical industry: used for labeling small round bottles such as ampoules and vials, often used in conjunction with light inspection machines.

Food and beverage: suitable for high-speed labeling operations of round bottles such as mineral water, juice, and yogurt.

Cosmetics/personal care products: Achieve "zero wrinkles, zero bubbles" labeling effect for PE/PP material bottles used in hair conditioners and skincare products.

Features:

1. It has a wide range of applications, which can meet the full-circle labeling or half-circle labeling of round bottles, and the labeling switch between bottles is simple and easy to adjust.

3. The label has a high degree of coincidence, and the labeling belt detour adopts a rectifying mechanism, the labeling belt does not deviate, and the labeling position can be adjusted in three directions of x/y/z and the inclination of a total of eight degrees of freedom, no dead angle in adjustment, and high label coincidence.

3. The labeling quality is excellent, and the elastic pressure-covered label belt is adopted, and the labeling is smooth and wrinkle-free, which improves the packaging quality.

4. Flexible application, bottle stand-up labeling, with automatic bottle separation function, can be produced in a single machine or connected to an assembly line.

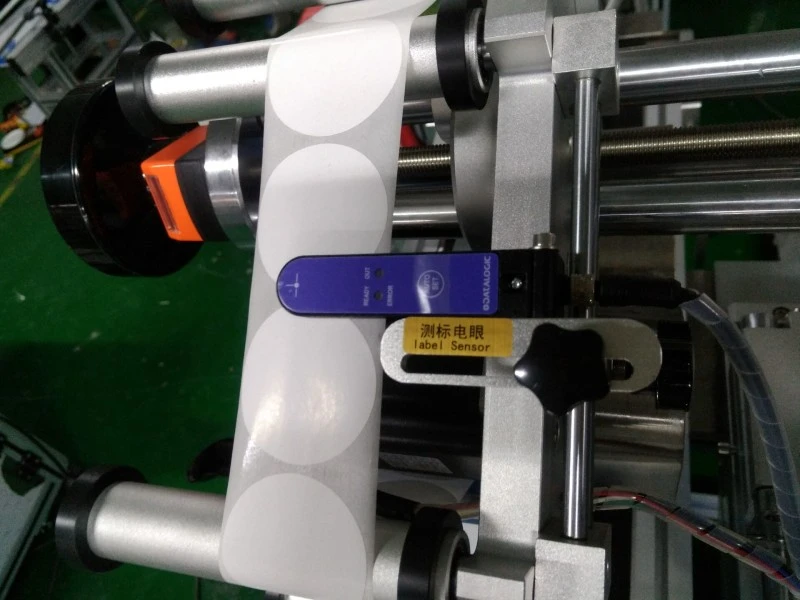

5. Intelligent control, automatic photoelectric tracking, with no labeling, no label automatic correction and label automatic detection function, to prevent missing stickers and label waste.

6. High stability, advanced electronic control system composed of Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German SICK measuring electric eye, which supports 7×24-hour operation of the equipment.

7. The adjustment is simple, the labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation, which can be adjusted according to needs.

8. Sturdy and durable, the three-bar adjustment mechanism is adopted to make full use of the stability of the triangle, and the whole machine is solid and durable. Made of stainless steel and high-grade aluminum alloy, in line with GMP production requirements.
