The horizontal round bottle labeling machine is an automated labeling equipment specifically designed for cylindrical objects with smaller diameters and unstable standing. It is widely used in industries such as pharmaceuticals, cosmetics, food, and daily chemicals, and is particularly suitable for high-speed and precise labeling of elongated or small-diameter containers such as oral liquid bottles, penicillin bottles, reagent tubes, and pen holders.
Unlike vertical models, the horizontal structure enhances operational stability through lateral conveying and labeling methods, effectively preventing issues such as vial toppling and jamming during conveyance, and significantly improving labeling efficiency and product yield.
Share:
Features
1. High labeling speed and accuracy
The labeling speed can reach 150 to 400 bottles per minute, and some high-speed models can even achieve 600 bottles per minute
Labeling accuracy is generally controlled within ±0.5mm, and some equipment can achieve ±0.1mm, ensuring high consistency in label placement
Supports various modes such as circular, semi-circular, and positioning labeling, meeting different packaging needs
2. Wide range of applicable products
Applicable bottle diameter: φ10mm～30mm (special models can be extended to φ50mm or more)
Typical applications: oral liquid bottles, ampoule bottles, syringes, markers, electronic cigarette stems, small-sized reagent bottles, and other elongated or fragile containers
The adoption of a flexible clamping mechanism prevents indentation or damage to fragile bottle bodies, enhancing the versatility of the equipment
3. Intelligent control system
Equipped with PLC + touch screen human-machine interface, the operation is intuitive and convenient
It possesses functions such as "labeling all items", "automatic correction without labels", and "detection and elimination of missing labels", reducing label waste and manual intervention
Optional coding machines, including inkjet printers and laser printers, can be equipped to achieve synchronous printing of label pasting, production date, batch number, and barcode
4. Strong production line integration capability
The equipment facilitats the integration with bottle-sorting machines, filling machines, etc. to form a U-shaped automated production line
Support linkage control with upstream equipment to achieve automated operation of the entire production line, reducing labor costs by over 70%

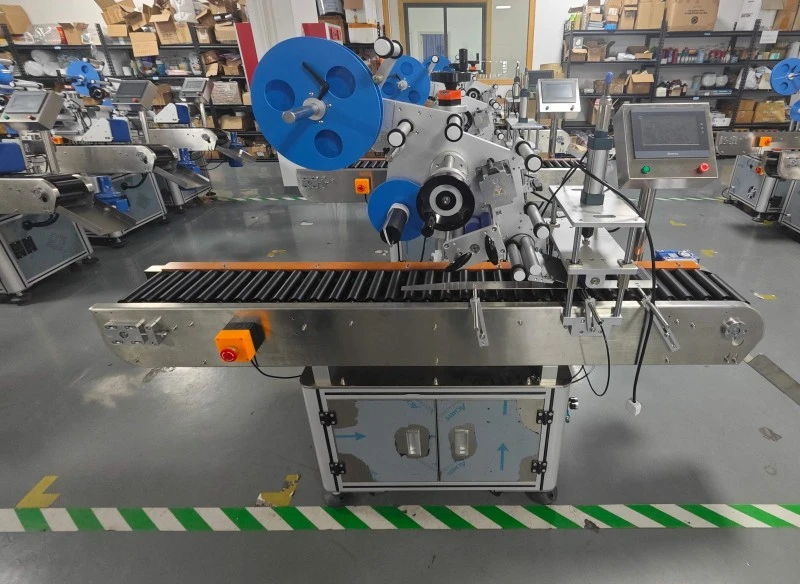

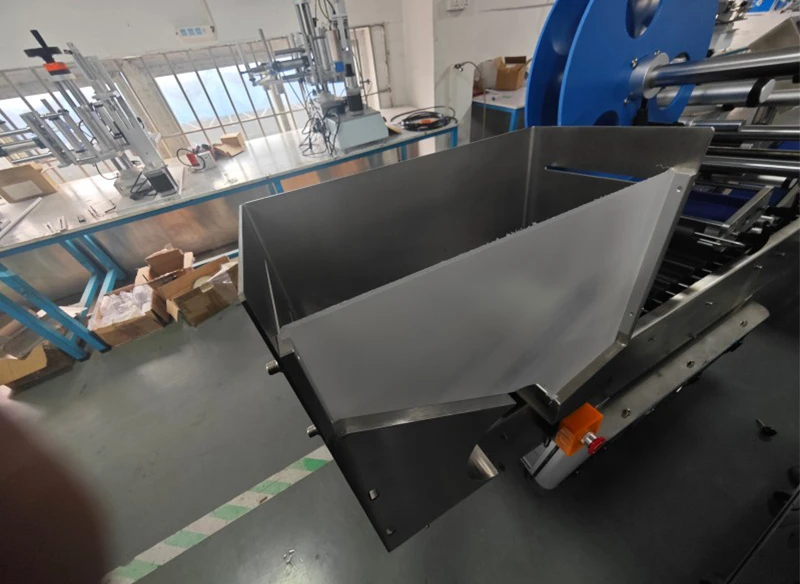

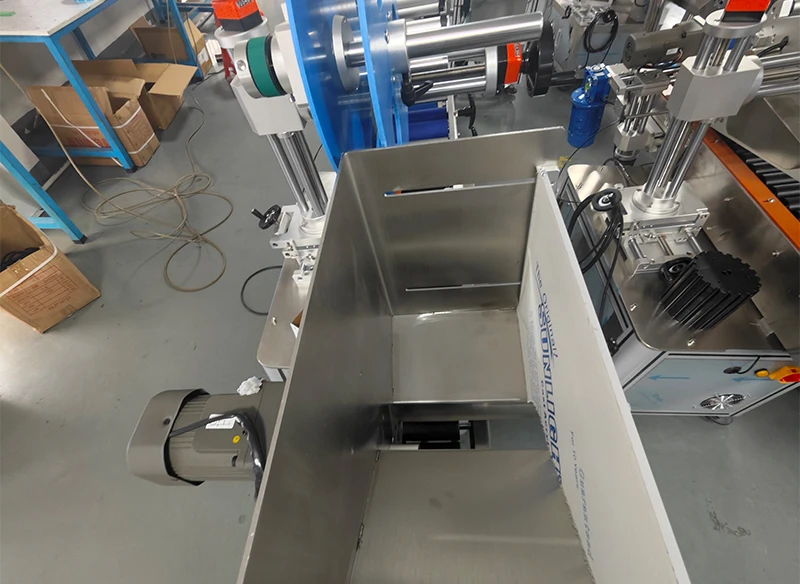

Equipment Showcase
Technical Parameter
|
Model |
HNTB-829 |
|
Label size |
Length：20mm～200mm |
|
Width：15mm～150mm |
|
|
Outer roll dia.（mm）：φ300 |
|
|
Product size |
Dia. : φ10mm～φ30mm |
|
Labeling speed |
100~300pcs/min |
|
Labeling accuracy |
±1mm |
|
Power |
220V 50HZ |
|
Dimension |
2040mm×690mm×1370mm |
|
Weight |
220kg |
Options
Dater printer
Auto feeding device
Auto receiving device
Extra labeling head
Multiple touch screen language
Electronic marking device for transparent label
