The fully automatic flat and round bottle integrated labeling machine is a multifunctional automation device that combines both flat and round bottle labeling functions. It is particularly suitable for production scenarios in industries such as pharmaceuticals, daily chemicals, and food, where there are multiple product categories, small batches, and high switching frequencies. This machine can complete both flat labeling of boxes and circumferential labeling of round bottles in a single device, significantly enhancing production line flexibility and space utilization, while reducing equipment procurement and maintenance costs.
Share:
Application
Round bottles: medicine bottles, beverage bottles, cosmetics bottles, cans;
Flat / Top Surface Type: square box, bottle cap, side of cardboard box, card;
Typical industries: food, medicine, daily chemical products, electronics, toys, and chemical industry.
Features:
1. One machine serves dual purposes, saving space and cost: there's no need to purchase two separate devices, with quick switching between operating conditions, making it ideal for small-batch, multi-category production;
2. High precision and stability: servo drive + fiber optic/photoelectric sensor, ensuring bubble-free, wrinkle-free, and skew-free labeling;
3. Easy operation and maintenance: Modular design, convenient for roll changing and cleaning, intuitive touch screen interface;
4. Strong scalability: It can be equipped with a coding machine, visual inspection system, automatic feeding/receiving line.

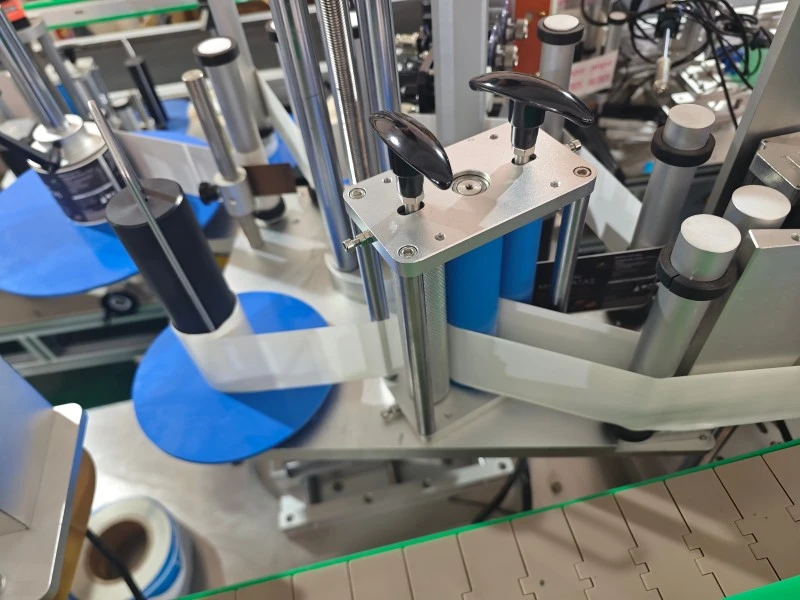

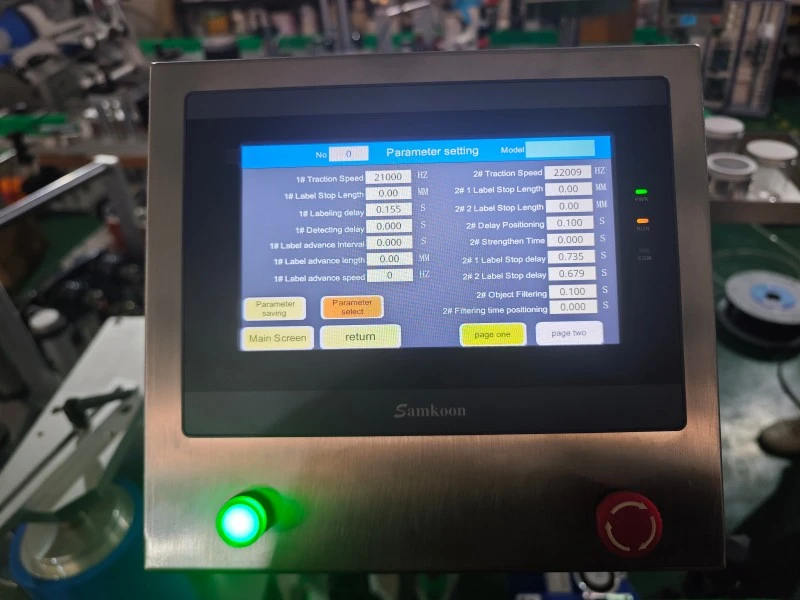

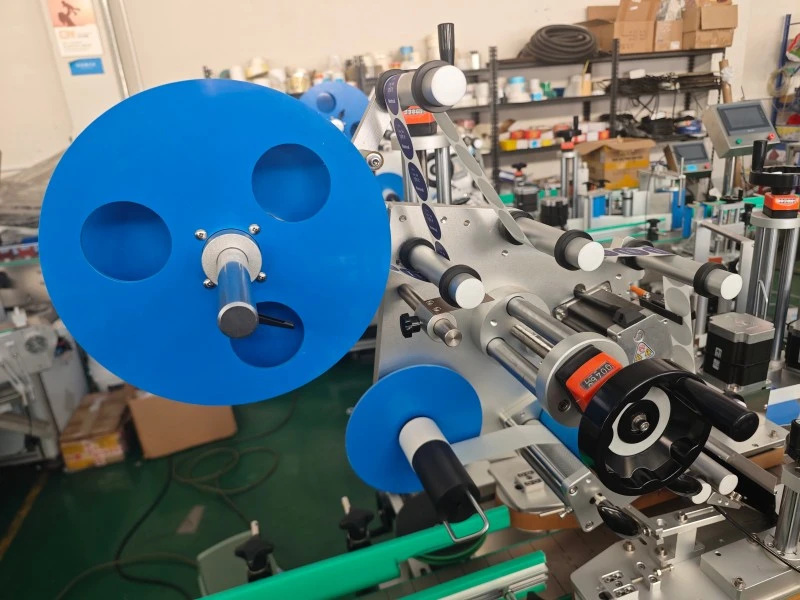

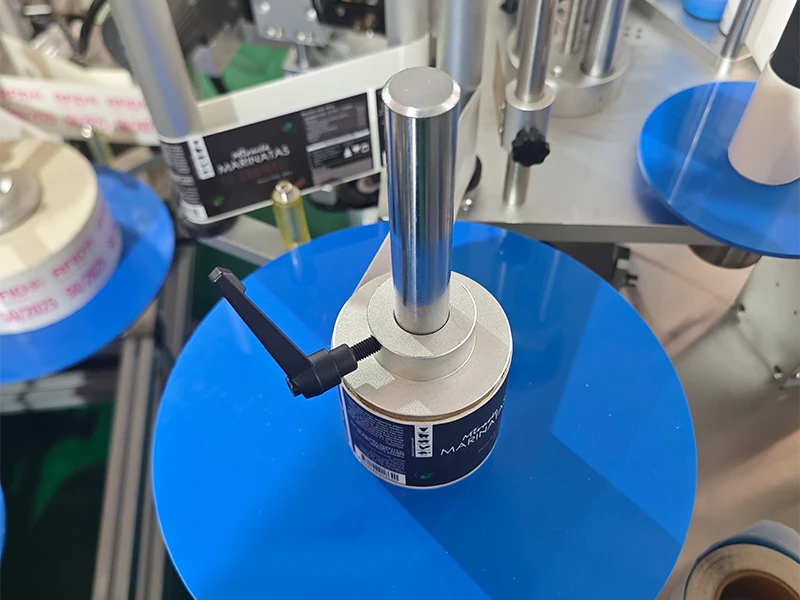

Equipment Showcase
Technical Parameter
|
Model |
HNTB-822D |
|
Label size |
Length：20mm～290mm |
|
Width：20mm～150mm |
|
|
Outer roll dia.（mm）：φ250 |
|
|
Product size |
Diameter:φ15mm～φ100mm |
|
Height：20-150mm |
|
|
Labeling speed |
20-30pcs/min |
|
Labeling accuracy |
±1mm |
|
Power source |
220V 50HZ |
|
Power |
1.45KW |
|
Dimension |
2600mm×1150mm×1740mm |
|
Weight |
220KG |

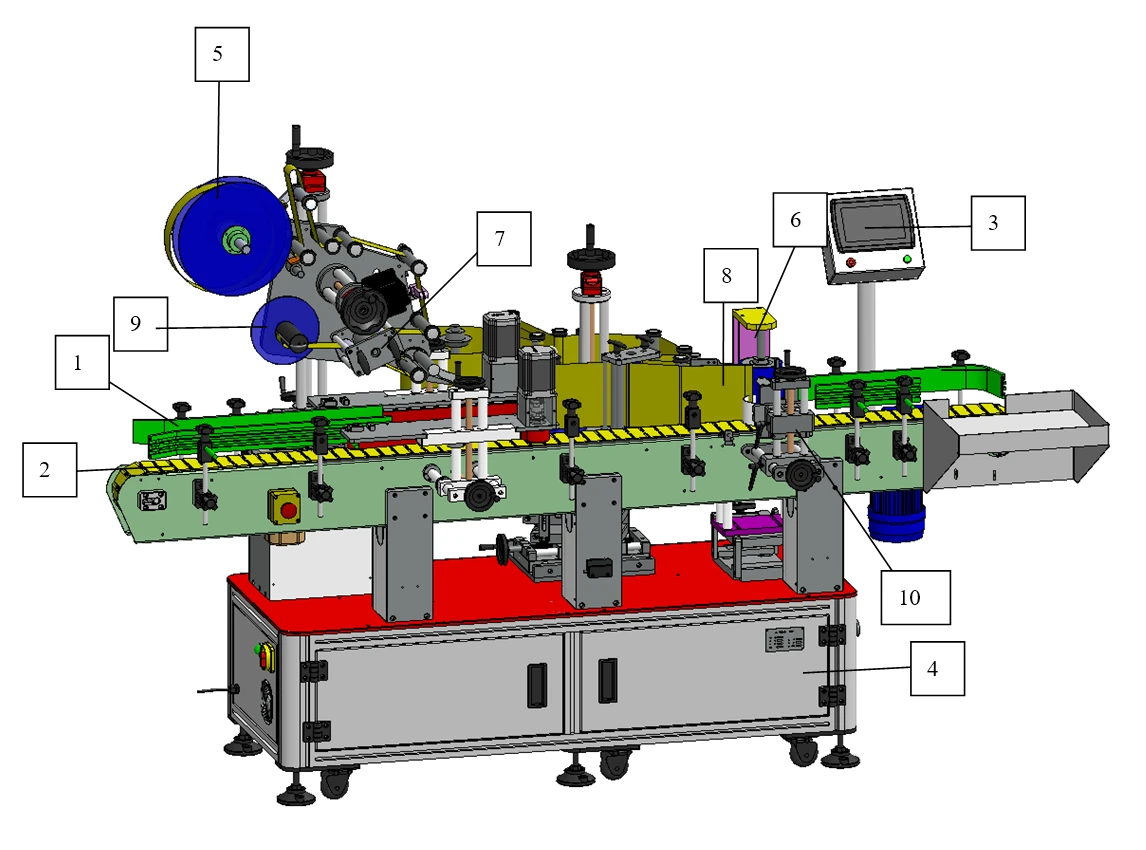

Structure
1. Guiding Rods
2. Conveyor Belt
3. Touch Screen
4. Electric Box
5. Label Tray
6. Fixing Device
7. Traction Device
8. Stripping board
9. Material collection mechanism
10. Positioning mechanism
Options
Dater printer
Auto feeding device
Auto receiving device
Extra labeling head
Multiple touch screen language
Electronic marking device for transparent label
