Introduction:
The fully automatic double-sided labeling machine is an efficient and precise automated packaging equipment, primarily used for simultaneously applying labels on both sides of a product. It is widely applied in industries such as daily chemical products, pharmaceuticals, food, and cosmetics, significantly enhancing production efficiency and ensuring labeling quality.
This type of equipment supports a variety of container types, including round bottles, square bottles, flat bottles, and irregular-shaped bottles. It is suitable for double-sided labeling of products such as shampoo bottles, laundry detergent bottles, and medicine bottles, achieving "one-time, double-sided labeling", reducing repeated feeding, and improving production line efficiency.
Share:
Features
1. Powerful functions, one machine can realize single-sided and double-sided labeling of 4 kinds of products (round bottle, flat bottle, square bottle, special-shaped bottle).
2. The double-sided rigid plastic synchronous guide chain is used to automatically ensure the neutrality of the bottle, and it has low requirements for workers to put bottles and connect the bottles to the assembly line, which greatly reduces the difficulty of workers' operation or assembly line docking.
3. Equipped with a spring-pressing top-pressing mechanism to ensure smooth product delivery and effectively eliminate the error of the bottle height itself.
4. Equipped with an automatic bottle separation mechanism, the spacing is automatically separated before the bottle is guided to ensure the stability of subsequent bottle guiding, transportation and labeling.
5. Equipped with two repeating labeling mechanisms to ensure the labeling accuracy for the first time, and the secondary extrusion-type labeling can effectively eliminate air bubbles and ensure that the label is tightly attached at the head and tail.
6. Intelligent control, automatic photoelectric tracking, with no labeling, no label automatic correction and label automatic detection function, to avoid wasting labels and missing stickers.
7. The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.

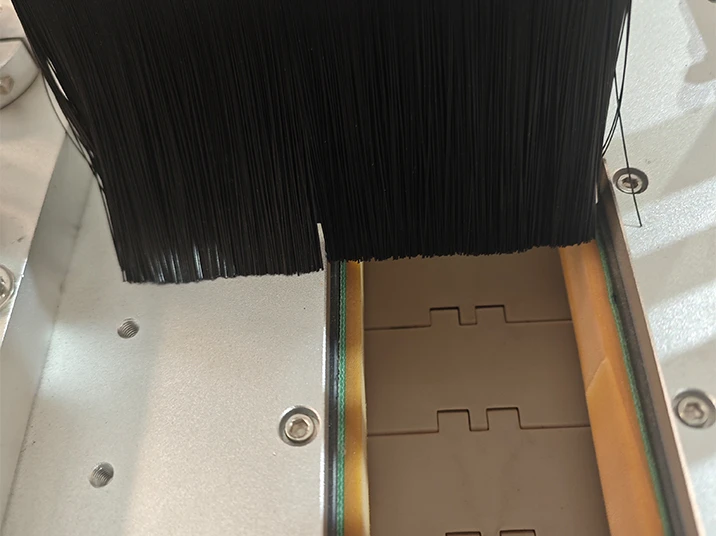

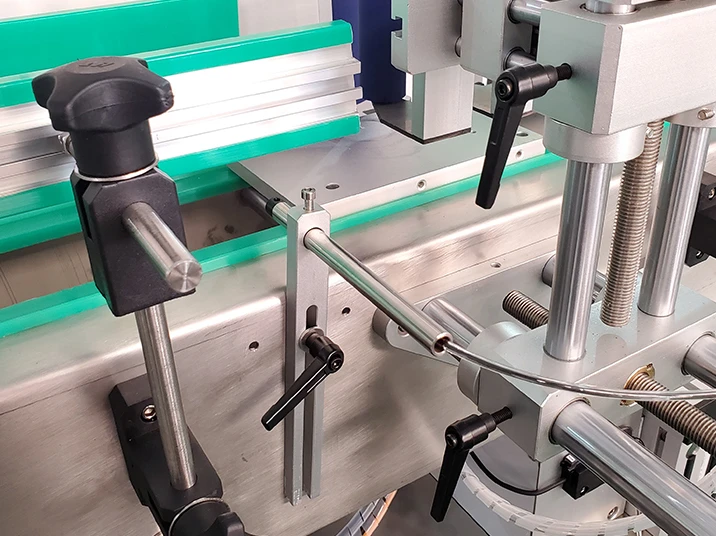

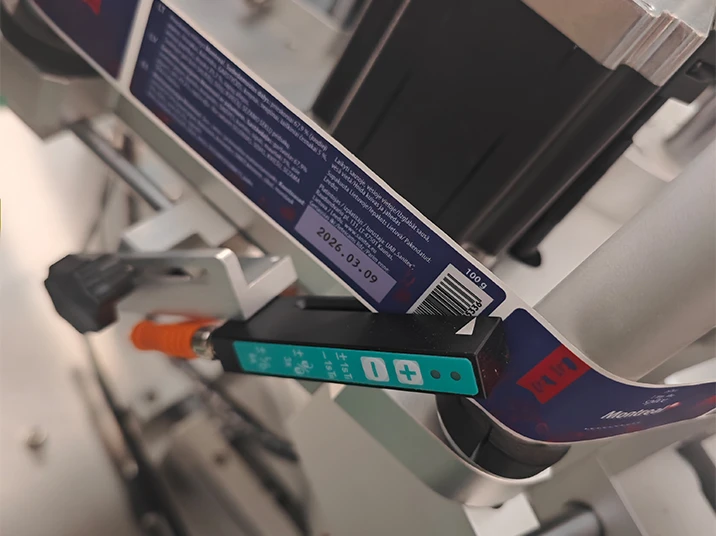

Equipment Showcase
Technical Parameter
|
Model |
HNTB-962 |
|
Label size |
Length：20mm～300mm |
|
Width：20mm～170mm |
|
|
Outer roll dia.（mm）：φ300 |
|
|
Product size |
Length：20mm～250mm |
|
Width：30mm～90mm |
|
|
Height：60mm～280mm |
|
|
Labeling speed |
30~120pcs/min |
|
Labeling accuracy |
±1mm |
|
Power |
220V 50HZ 1100W(step motor) 1600W(servo motor) |
|
Dimension |
3000mm×1450mm×1600mm |
|
Weight |
330kg |
Structure
1. Guiding Rods
2. Conveyor Belt
3. Touch Screen
4. Electric Box
5. Bottle Separating Device6. Guide mechanism
7. Top pressing mechanism 8. Master switch
9. Emergency stop switch
10. Electric eye for product
Options
Dater printer
Auto feeding device
Auto receiving device
Positioning device
Extra labeling head
Multiple touch screen language
Electronic marking device for transparent label
